Starting Batteries, Alternators, and ABYC Electrical Intent

Purpose and scope

This document examines starting battery behavior in outboard powered boats through the lens of ABYC electrical safety intent, with particular focus on alternator charging interaction and system architecture.

It is written to explain:

• Why traditional single battery wiring worked reliably for decades
• Why modern battery chemistries expose architectural assumptions in that wiring
• How ABYC's long standing requirements already anticipate these risks
• Why architectural separation, not chemistry selection, is the durable solution

This document is product agnostic and references ABYC standards by intent and application, not by reproducing copyrighted text.

ABYC's foundational concern: loss of propulsion and uncontrolled energy

ABYC's DC electrical standards—principally E 11 (AC and DC Electrical Systems on Boats)—are structured around preventing predictable hazards, including:

• Loss of propulsion
• Uncontrolled energy release
• Damage to critical engine and control electronics
• Fire resulting from improper overcurrent protection or switching

A recurring theme in ABYC electrical guidance is that propulsion critical engine circuits must not be casually interruptible, and that charging sources must be arranged so that normal protective actions do not create new hazards.

These principles predate lithium batteries. They exist because loss of propulsion is a safety event, not an inconvenience.

The starting battery as a critical system reference

A starting battery serves two distinct electrical roles:

• Cranking support — Delivering very high current for a short duration while maintaining sufficient voltage for engine electronics.
• Post start system reference — Once the engine is running, the battery becomes the voltage reference seen by the alternator regulator and absorbs transients from both loads and charging sources.

ABYC treats circuits involved in propulsion and engine operation as critical, and the starting battery sits at the center of that domain.

What outboard wiring looks like in practice

In typical outboard installations, the starter motor feed and alternator charging output are electrically common inside the engine electrical system. Practically, this presents as:

• One engine positive cable landing on the battery positive terminal
• One engine negative cable landing on the battery negative terminal

That common engine cable supplies:

• The starter motor
• The alternator charging return
• The engine control electronics (ECU)

House loads are often connected to the same battery positive terminal in single battery installations.

This arrangement is not incorrect. It is the legacy architecture that worked because the battery chemistry cooperated with it.

Why AGM aligned with ABYC assumptions

Lead acid batteries, including AGM, exhibit a sloped voltage profile during charging. As charge state increases, terminal voltage rises in a predictable way.

This behavior provides continuous feedback to a voltage regulated alternator:

• Rising voltage signals charging progress
• Alternator output naturally tapers
• The system stabilizes without abrupt intervention

In this environment, ABYC aligned outcomes were achieved implicitly. The battery chemistry itself absorbed irregularities and masked architectural coupling.

Alternator regulation depends on voltage, not state of charge

Marine outboard alternators are typically voltage regulated devices. They do not measure state of charge or battery chemistry. They respond to system voltage.

This creates two operational regimes:

• Below the regulation window: alternator output tends toward maximum
• Within the regulation window: output is governed primarily by sensed voltage

ABYC safety assumptions rely on voltage being a meaningful proxy for charging progress.

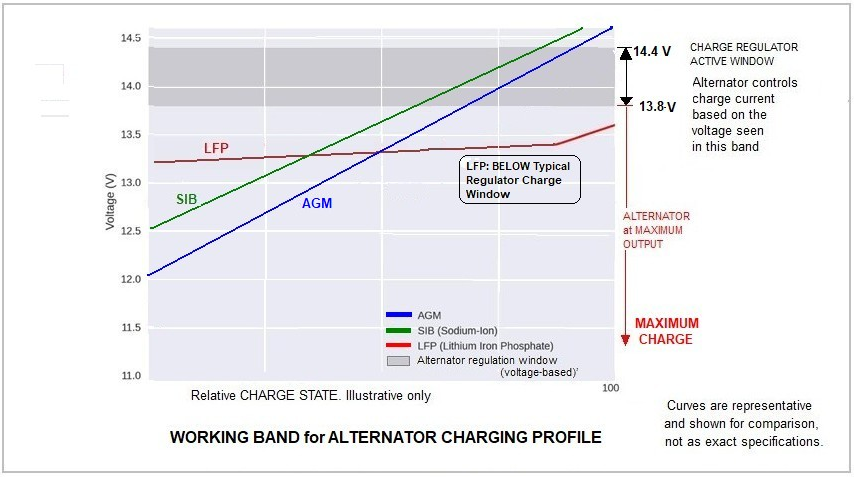

Representative voltage behavior of AGM, sodium ion, and LFP batteries relative to the alternator's voltage based regulation window.

Flat voltage chemistries remove the feedback ABYC systems rely on

Lithium iron phosphate batteries are excellent at delivering current. The problem is not the load. The problem is the charging.

Across most of their usable charge range, LFP batteries exhibit minimal voltage change. Once system voltage enters the alternator's regulation window:

• Voltage no longer reflects charge state
• Alternator output does not taper naturally
• Charging behavior becomes ambiguous

This is not a defect. It is a chemistry characteristic that removes the passive feedback legacy systems depend on.

Where ABYC intent collides with modern battery protection

Modern batteries include protection systems that act decisively to prevent over voltage, over current, and thermal excursions. These actions are appropriate at the cell level.

However, when installed into a legacy architecture where:

• Starter motor
• Alternator output
• Engine electronics (ECU)
• House loads

are electrically inseparable, a protective action intended to safeguard the battery can:

• Interrupt the engine's electrical reference
• Collapse alternator load unexpectedly
• Brown out or reset engine control electronics

Why legacy wiring "worked" without violating ABYC intent

In traditional installations:

• The battery itself absorbed charging irregularities
• Voltage slope acted as a passive regulator
• Protective events were rare and gradual

ABYC compliance was often achieved implicitly because lead acid chemistry masked architectural coupling.

When chemistry stops masking that coupling, the system must become explicit.

The architectural problem ABYC is actually addressing

The core issue is path coupling.

When all electrical roles converge at a single battery terminal:

• Any interruption affects everything
• Protection cannot be selective
• Faults propagate across domains

ABYC's electrical intent pushes toward systems where:

• Propulsion critical engine circuits remain uninterrupted
• Charging sources cannot create uncontrolled transients
• House loads can be protected without risking propulsion

This is an architectural requirement, not a chemistry preference.

Split path architecture as an ABYC aligned outcome

A split path architecture separates electrical roles:

• Engine path — Direct, uninterrupted connection supporting starting, alternator reference, and ECU operation.
• House path — Independently protectable and manageable.
• Charging sources — Confined to the managed domain so faults cannot back feed into the engine path.

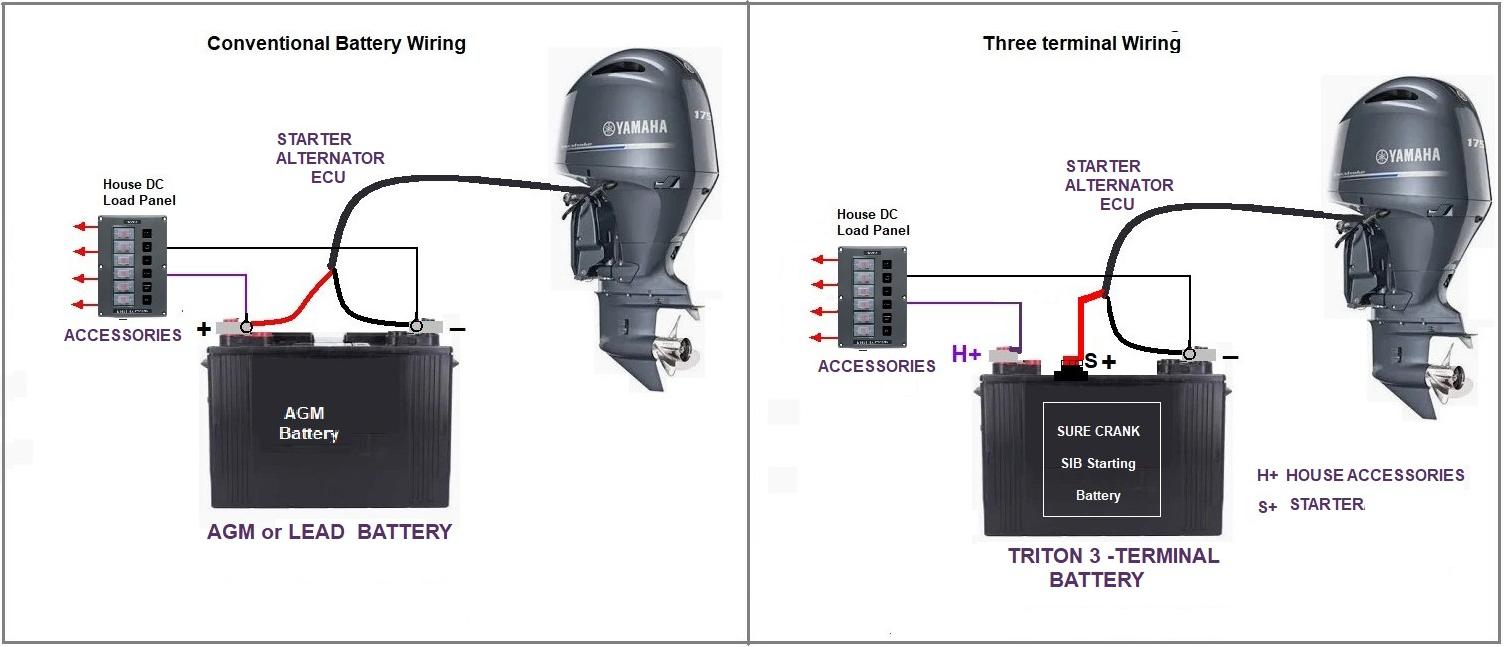

Conventional single post wiring compared to split path three terminal architecture.

What does not change

• The outboard still connects to a battery positive and negative using a single common engine cable.
• That common engine cable supplies the starter motor, alternator charging return, and engine control electronics (ECU).
• That propulsion critical engine supply path is not intended to be interrupted during normal operation.

From an ABYC perspective, this is not optional. The engine electrical system is treated as a propulsion critical circuit, and interruption of the common engine supply while running can result in loss of propulsion, ECU reset/shutdown, or unpredictable engine behavior.

This is why ABYC has long discouraged placing switches, relays, or electronic disconnect devices in the engine supply path unless specifically designed for that role. The intent is simple: normal protective or switching actions must not compromise propulsion reliability.

What does change

• House loads are no longer assumed to be part of the engine electrical domain.
• Protective disconnect and management are applied only to circuits where interruption is acceptable.
• Charging sources are confined to the managed domain so that foreseeable faults or disconnects cannot propagate into the engine supply.

Summary

ABYC electrical standards are written to prevent loss of propulsion and uncontrolled energy events. Traditional battery chemistries cooperated with these goals by providing natural voltage feedback and passive stabilization.

Modern flat voltage chemistries remove that cooperation, making architectural coupling visible. When chemistry stops compensating for system assumptions, ABYC intent requires explicit separation of electrical roles so that normal protective behavior does not create new hazards.
